Xinguang plastic

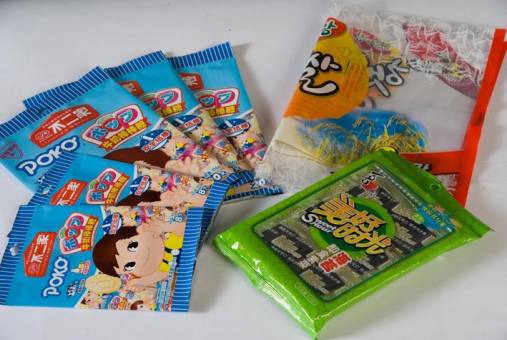

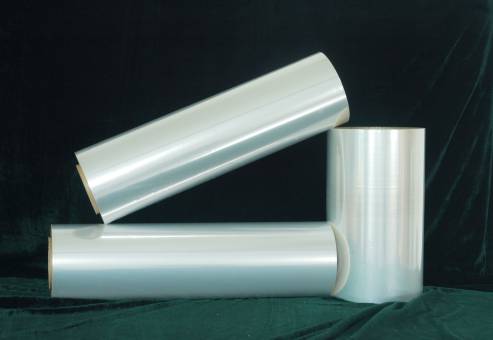

Laminated Pet, BOPP film , widely used in a variety of food, cosmetics packaging
FEATURES: High Transparency, low temperature heat seal stage
Derivatives: High stiffness or softness according to customers’ requirement
| Performance category | Test method | Unit of measurement | Typical range | |
| Thickness | GB/T6672-2001 | um | 20-120 | |
| ultimate tensile strength | Longitudinal tensile strength | GB/T1040.3-2006 | Mpa | 50-65 |
| Transverse tensile strength | GB/T1040.3-2006 | Mpa | 30-40 | |
| Elongation at break | Longitudinal tensile strength | GB/T1040.3-2006 | % | 500-1000 |
| Transverse tensile strength | GB/T1040.3-2006 | % | 600-1000 | |
| coefficient of friction | Corona surface | GB/T10006-1988 | – | 0.3 |
| Non Corona surface | GB/T10006-1988 | – | 0.2 | |
| Degree of fog | GB/T2410-2008 | % | ≤8 | |
| Sealing temperature | ℃ | 130 | ||
| Wetting tension | GB/T 14216-2008 | Dyn | 38 | |
| Note: The test data is for reference only, if necessary, please contact the relevant personnel to provide more accurate data | ||||
